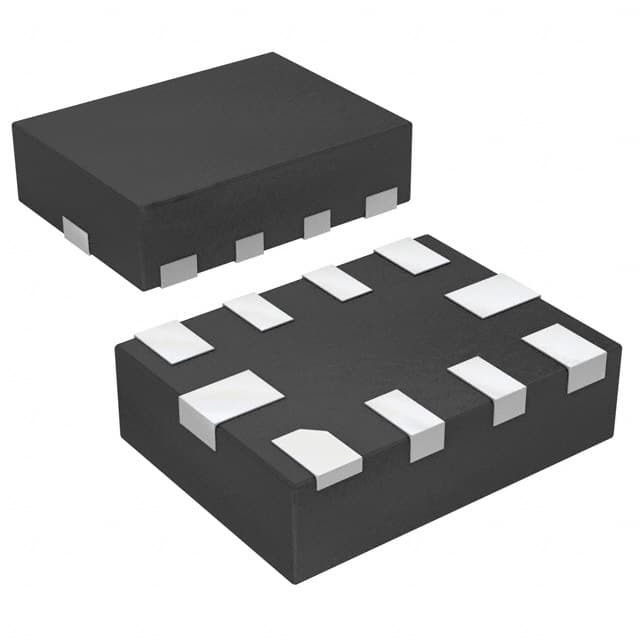

TS3USB221ARSER

SKU: 36552

Manufacturer: Texas Instruments

Analog Multiplexer Single 1:2 10-Pin UQFN T/R

107760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Multiplexer
Number of Channels per Chip	1
Number of Inputs per Chip	2
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Maximum Data Rate (Mbps)	480(Typ)
Maximum Propagation Delay Bus to Bus (ns)	0.25(Typ)@2.5V@-40C to 85C
Maximum Turn-On Time (ns)	50@2.5V@-40C to 85C
Maximum Turn-Off Time (ns)	23@2.5V@-40C to 85C
Maximum Frequency (25°C) @ Vcc (MHz)	900(Typ)@3.3V@-40C to 85C
Input Signal Type	Differential
Output Signal Type	Differential
Minimum Single Supply Voltage (V)	2.3
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	0.03@3.6V@-40C to 85C
Maximum On Resistance (Ohm)	6@3V
Maximum On Resistance Range (Ohm)	5 to 10
Propagation Delay Test Condition (pF)	10
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	QFN
Original Package	UQFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2.05(Max)
Package Width	1.55(Max)
PCB changed	10
