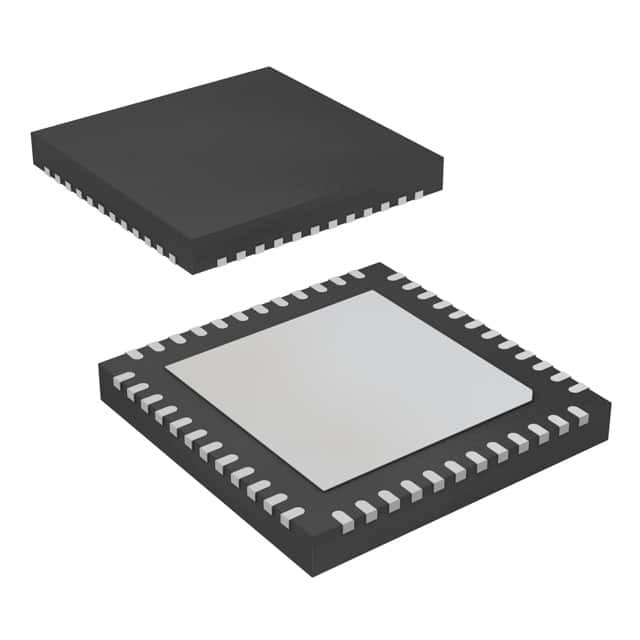

TPA3100D2RGZR

SKU: 85848

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 21.8W Class-D 48-Pin VQFN EP T/R

6610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.11%@8Ohm@20W
Output Signal Type	Differential
Output Type	2-Channel Stereo
Minimum Dual Supply Voltage (V)	10
Typical Dual Supply Voltage (V)	12
Maximum Dual Supply Voltage (V)	26
Maximum Quiescent Current (mA)	26.5@24V
Power Supply Type	Dual
Typical Output Power x Channels @ Load (W)	21.8x2@8Ohm
Maximum Power Dissipation (mW)	4630
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	7.15(Max)
Package Width	7.15(Max)
PCB changed	48
