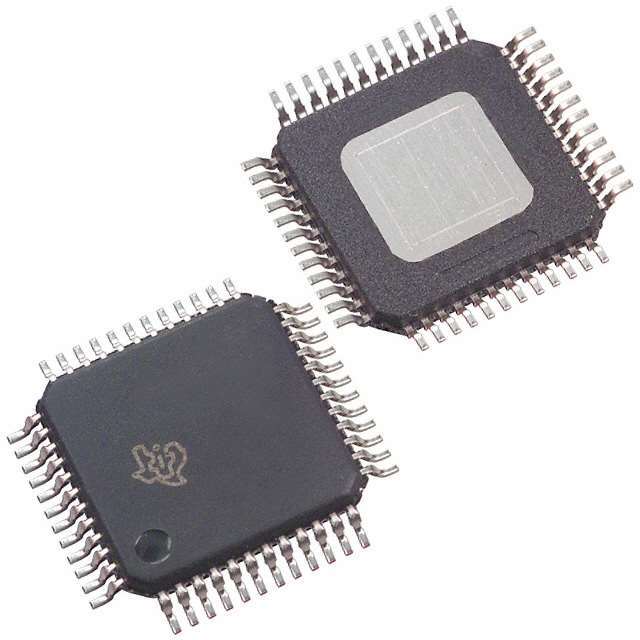

TPA3100D2PHPR

SKU: 64683

Manufacturer: Texas Instruments

Audio Amp Speaker 2-CH Stereo 21.8W Class-D 48-Pin HTQFP EP T/R

770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-D
THDN	0.11%@8Ohm@20W
Output Signal Type	Differential
Output Type	2-Channel Stereo
Minimum Dual Supply Voltage (V)	10
Typical Dual Supply Voltage (V)	18
Maximum Dual Supply Voltage (V)	26
Maximum Quiescent Current (mA)	26.5@24V
Power Supply Type	Dual
Typical Output Power x Channels @ Load (W)	21.8x2@8Ohm
Maximum Power Dissipation (mW)	5000
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
