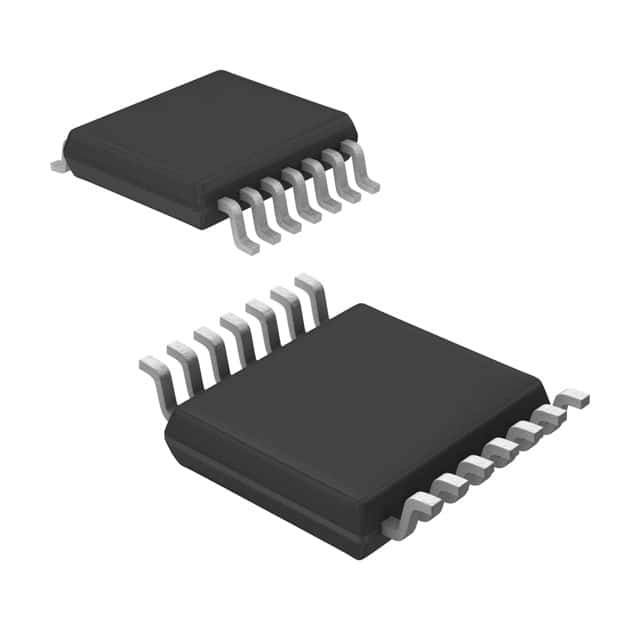

PGA281AIPW

SKU: 108530

Manufacturer: Texas Instruments

INST Amp Single R-R O/P ±2.75V/5.5V 16-Pin TSSOP Tube

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Typical Gain Bandwidth Product (MHz)	6
Maximum Voltage Gain (dB)	42
Maximum Voltage Gain Range (dB)	35 to 50
Minimum CMRR (dB)	121
Minimum CMRR Range (dB)	120 to 130
Minimum PSRR (dB)	150.5(Typ)
Maximum Input Offset Voltage (mV)	0.12(Typ)@±15V
Operating Supply Voltage-Max (V)	±2.75
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.002@±15V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
