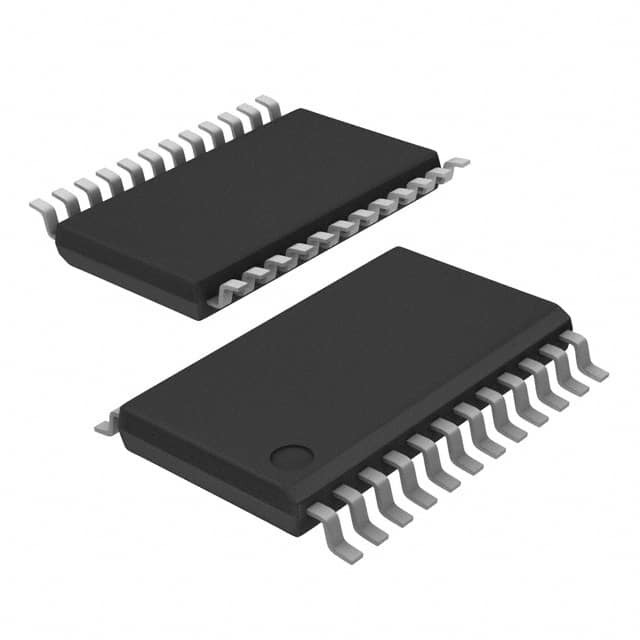

PGA280AIPW

SKU: 28070

Manufacturer: Texas Instruments

INST Amp Quad ±18V/36V 24-Pin TSSOP Tube

670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	4
Typical Gain Bandwidth Product (MHz)	6
Maximum Voltage Gain (dB)	42.14
Maximum Voltage Gain Range (dB)	35 to 50
Minimum CMRR (dB)	141.94(Typ)
Minimum CMRR Range (dB)	>=130
Maximum Input Offset Voltage (mV)	0.25@±15V
Operating Supply Voltage-Max (V)	±18
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Maximum Input Bias Current (uA)	0.1@±15V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	24
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.9(Max)
Package Width	4.5(Max)
PCB changed	24
