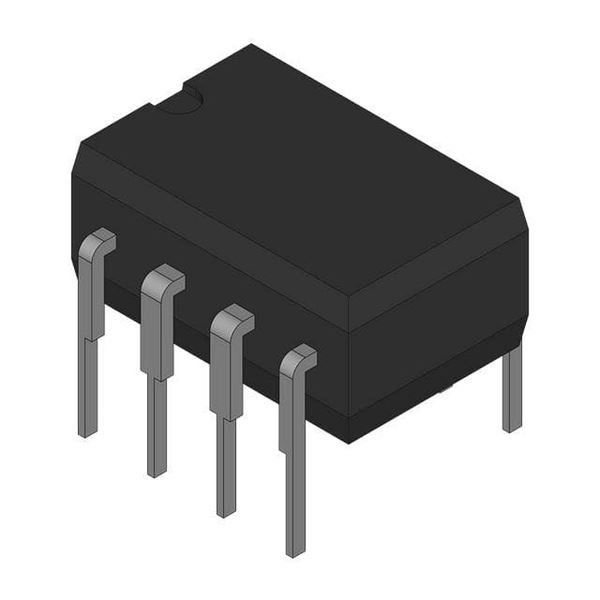

OPA637AP

SKU: 91546

Manufacturer: Texas Instruments

Op Amp Single Low Offset Voltage Amplifier ±18V/36V 8-Pin PDIP Tube

240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Offset Voltage Amplifier
Manufacturer Type	Low Offset Voltage Amplifier
Number of Channels per Chip	1
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	0.5@±15V
Minimum Single Supply Voltage (V)	9
Typical Single Supply Voltage (V)	30
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.00001@±15V
Maximum Input Bias Current (uA)	0.00001@±15V
Maximum Supply Current (mA)	7.5@±15V
Typical Output Current (mA)	45@±15V
Power Supply Type	Single
Maximum Power Dissipation (mW)	1000
Typical Slew Rate (V/us)	135@±15V
Typical Input Noise Voltage Density (nV/rtHz)	20@±15V
Typical Voltage Gain (dB)	116
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0025@±15V
Minimum PSRR (dB)	100
Minimum CMRR (dB)	100
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	80
Typical Settling Time (ns)	450
Shut Down Support	No
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
