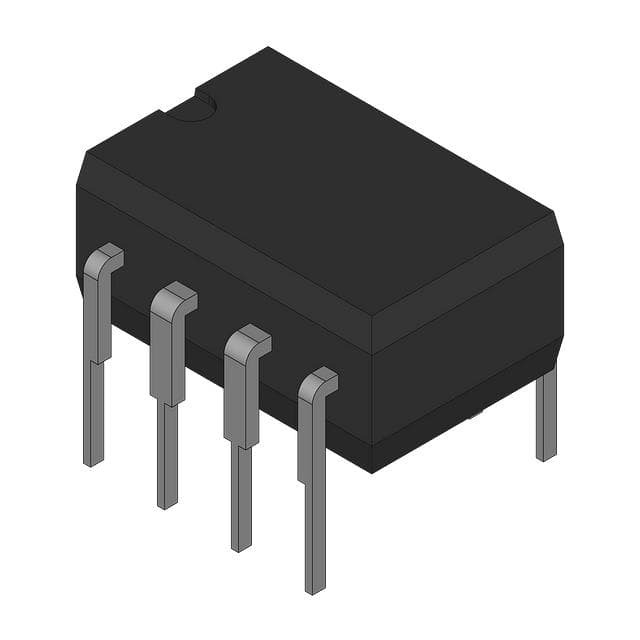

OPA633KP

SKU: 27962

Manufacturer: Texas Instruments

Op Amp Single Buffer Amplifier ±16V 8-Pin PDIP Tube

330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Buffer Amplifier
Manufacturer Type	Buffer Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	15@±12V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±16
Typical Input Bias Current (uA)	15@±12V
Maximum Input Bias Current (uA)	35@±12V
Maximum Quiescent Current (mA)	25@±12V
Typical Output Current (mA)	100@±12V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1950
Typical Slew Rate (V/us)	2500@12V
Typical Settling Time (ns)	50
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	75
Packing Method	Tube
Original Package	PDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
