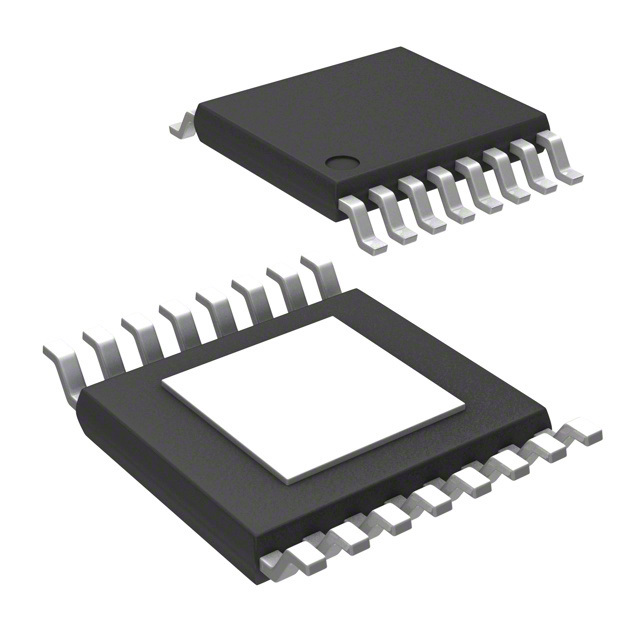

LM5575MH

SKU: 12345

Manufacturer: Texas Instruments

Conv DC-DC 6V to 75V Synchronous Step Down Single-Out 1.23V to 70V 1.5A 16-Pin HTSSOP EP Tube

770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	50 to 500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.23 to 70
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	75
Typical Switch Current (A)	2.1
Typical Quiescent Current (uA)	1000
Efficiency (%)	90
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
