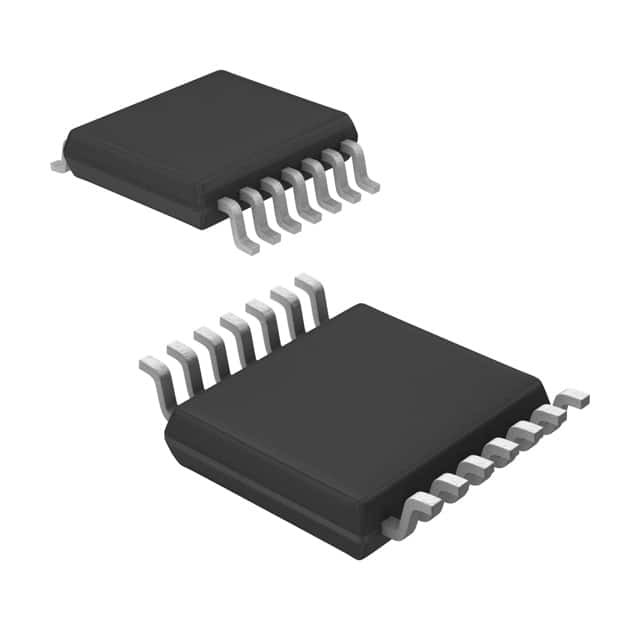

LM5574QMTX/NOPB

SKU: 97233

Manufacturer: Texas Instruments

Conv DC-DC 6V to 75V Synchronous Step Down Single-Out 1.225V 0.5A Automotive 16-Pin TSSOP T/R

6150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	50 to 500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.225(Min)
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	6 to 75
Typical Switch Current (A)	0.7
Typical Quiescent Current (uA)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
