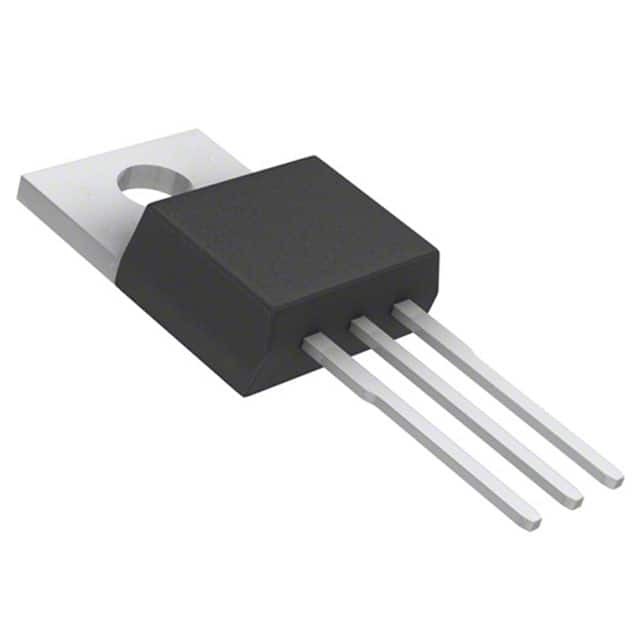

    LM317HVT/NOPB

    SKU: 132639
    Manufacturer: Texas Instruments
    Standard Regulator Pos 1.2V to 57V 1.5A 3-Pin(3+Tab) TO-220 Tube
    6950 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type Standard
    Number of Outputs 1
    Polarity Positive
    Output Type Adjustable
    Output Voltage (V) 1.2 to 57
    Maximum Output Current (A) 1.5
    Minimum Input Voltage (V) 4.2
    Maximum Input Voltage (V) 60
    Reference Voltage (V) 1.3
    Line Regulation 0.04%/V
    Load Regulation 0.5%
    Junction to Ambient 35°C/W
    Junction to Case 2.3°C/W
    Special Features Current Limit
    Operating Temperature-Min 0
    Operating Temperature-Max 125
    Packing Method Tube
    Original Package TO-220
    Pin Count 3
    Standard Package Method TO-220
    Terminal Form Through Hole
    Package Height 8.89(Max)
    Package Length 10.16
    Package Width 4.7(Max)
    PCB changed 3
    Tab Tab
