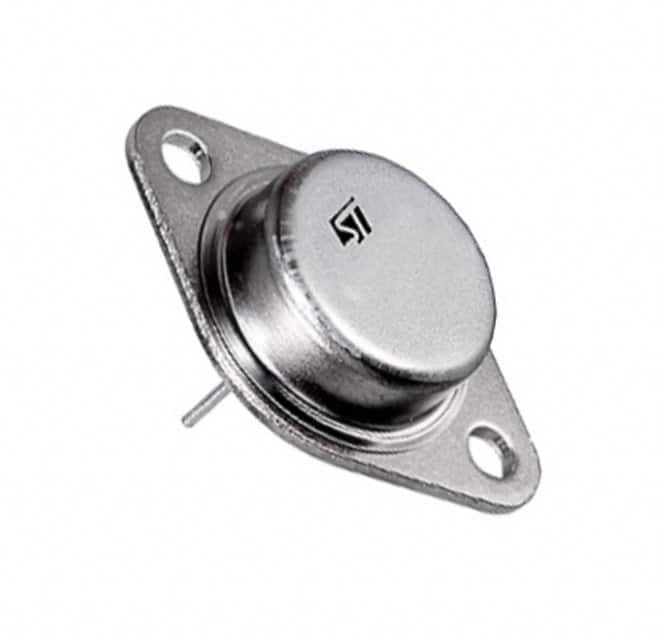

LM317K STMicroelectronics

LM317K

SKU: 97156

Manufacturer: STMicroelectronics

Standard Regulator Pos 1.2V to 37V 0.4A 3-Pin(2+Tab) TO-3 Bag

Download sample

Request Free Samples

3690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	0.4(Typ)
Maximum Input Voltage (V)	40
Reference Voltage (V)	1.3
Line Regulation	0.04%/V
Load Regulation	0.5%
Junction to Ambient	35°C/W
Junction to Case	4°C/W
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Bag
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	8.7(Max)
Package Length	39.5(Max)
Package Width	26.2(Max)
PCB changed	2
Tab	Tab
