JM38510/11402BGA

SKU: 146514

Manufacturer: Texas Instruments

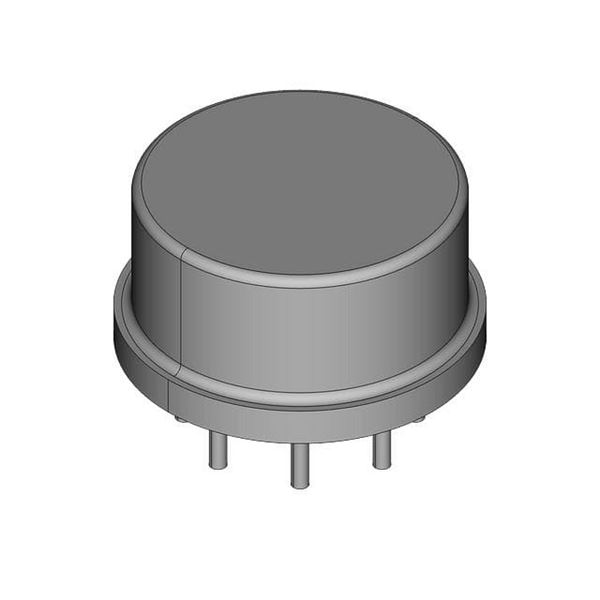

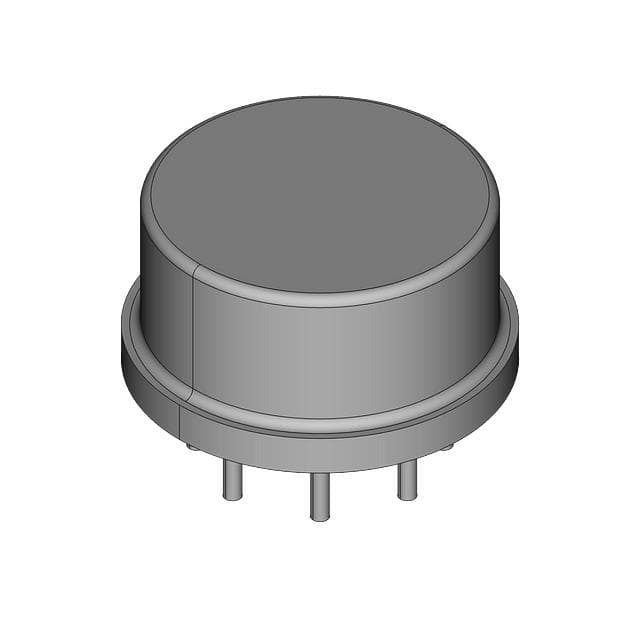

Op Amp Single GP ±20V 8-Pin TO-99 Tray

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	1
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	5@±5V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±20
Maximum Input Offset Current (uA)	0.00002@±20V
Maximum Input Bias Current (uA)	0.0001@±20V
Maximum Supply Current (mA)	7@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1200
Typical Slew Rate (V/us)	7.5(Min)@±15V
Typical Input Noise Voltage Density (nV/rtHz)	12
Typical Voltage Gain (dB)	80(Min)
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.01
Minimum PSRR (dB)	85
Minimum CMRR (dB)	85
Minimum CMRR Range (dB)	85 to 90
Typical Gain Bandwidth Product (MHz)	5
Typical Settling Time (ns)	1500(Max)
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tray
Original Package	TO-99
Pin Count	8
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
