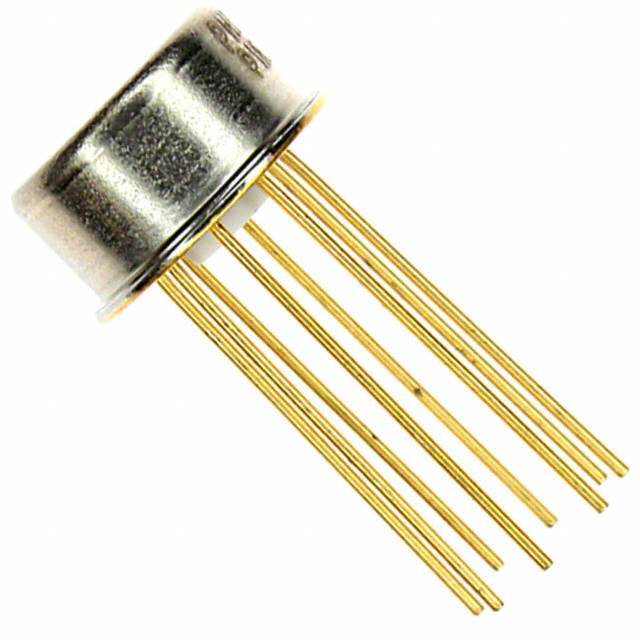

JM38510/11405BGA

SKU: 87018

Manufacturer: Analog Devices

Op Amp Single Low Power Amplifier ±20V 8-Pin TO-99 Tube

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	2@±5V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±20
Maximum Input Offset Current (uA)	0.00002@±20V
Maximum Input Bias Current (uA)	0.0003@±15V
Maximum Supply Current (mA)	7@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	330
Typical Slew Rate (V/us)	10(Min)@±15V
Typical Voltage Gain (dB)	80(Min)
Minimum PSRR (dB)	85
Minimum CMRR (dB)	85
Minimum CMRR Range (dB)	85 to 90
Typical Settling Time (ns)	4000
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	TO-99
Pin Count	8
Standard Package Method	TO-99
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
