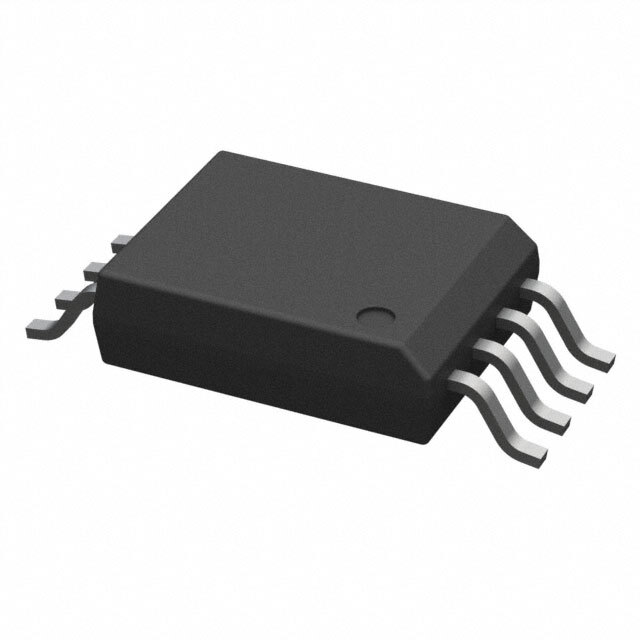

    AMC1300BDWV

    SKU: 114893
    Manufacturer: Texas Instruments
    SP Amp ISOL Amp Single 5.5V 8-Pin SOIC Tube
    Request Free Samples
    1780 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.33.00.01
    Automotive No
    PPAP No
    Type Isolation Amplifier
    Number of Elements per pcs 1
    Number of Channels per Chip 1
    Minimum CMRR Range (dB) 95 to 105
    Minimum CMRR (dB) 98(Typ)
    Minimum PSRR (dB) 86(Typ)
    Maximum Input Offset Voltage (mV) 0.2@5.5V
    Operating Supply Voltage-Max (V) 5.5
    Maximum Supply Voltage Range (V) 5 to 7
    Minimum Single Supply Voltage (V) 3
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 5.5
    Maximum Input Bias Current (uA) 30(Typ)@3.3V/5V
    Maximum Supply Current (mA) 9.8@5.5V/8.1@5.5V@-55C to 125C
    Maximum Input Resistance (MOhm) 0.022@3.3V/5V
    Maximum Power Dissipation (mW) 98.45(Typ)
    Operating Temperature-Min -55
    Operating Temperature-Max 125
    Supplier Temperature Grade Extended Industrial
    Packing Method Tube
    Power Supply Type Single
    Original Package SOIC
    Pin Count 8
    Terminal Form Surface Mount
    Package Height 2.29
    Package Length 5.95(Max)
    Package Width 7.6(Max)
    PCB changed 8
