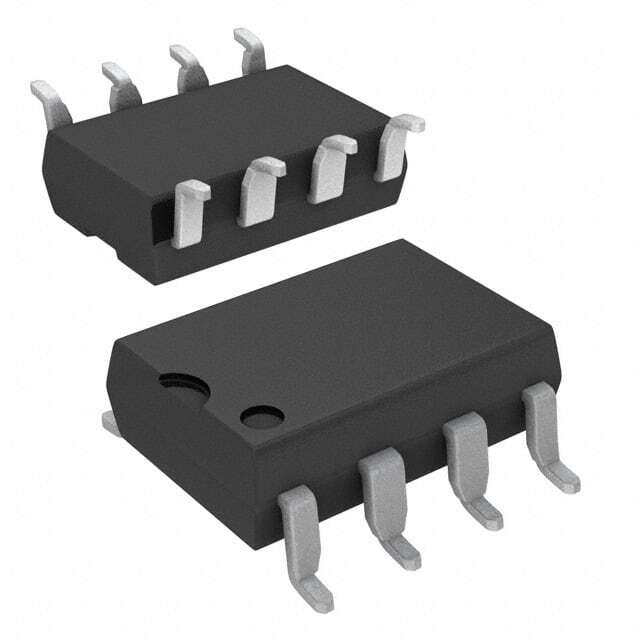

AMC1200SDUB

SKU: 130997

Manufacturer: Texas Instruments

SP Amp ISOL Amp Single 5.5V 8-Pin SOP Tube

50 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Isolation Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Minimum CMRR Range (dB)	95 to 105
Minimum CMRR (dB)	95(Typ)
Minimum PSRR (dB)	61(Typ)
Output Type	Differential
Maximum Input Offset Voltage (mV)	0.2(Typ)@5V@3.3V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Dual Supply Voltage (V)	4.5
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	5.5
Minimum DC Continuous Isolation Voltage (V)	4000(Typ)
Maximum Supply Current (mA)	5.4(Typ)@5V/4.4(Typ)@3.3V
Maximum Input Resistance (MOhm)	0.028(Typ)@5V@3.3V
Maximum Power Dissipation (mW)	44
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tube
Power Supply Type	Dual
Pin Count	8
Standard Package Method	SOP
Original Package	SOP
Terminal Form	Surface Mount
Package Height	3.35(Max)
Package Length	9.55(Max)
Package Width	6.67(Max)
PCB changed	8
