KHAU-11D11-24

SKU: 47578

Manufacturer: TE Connectivity

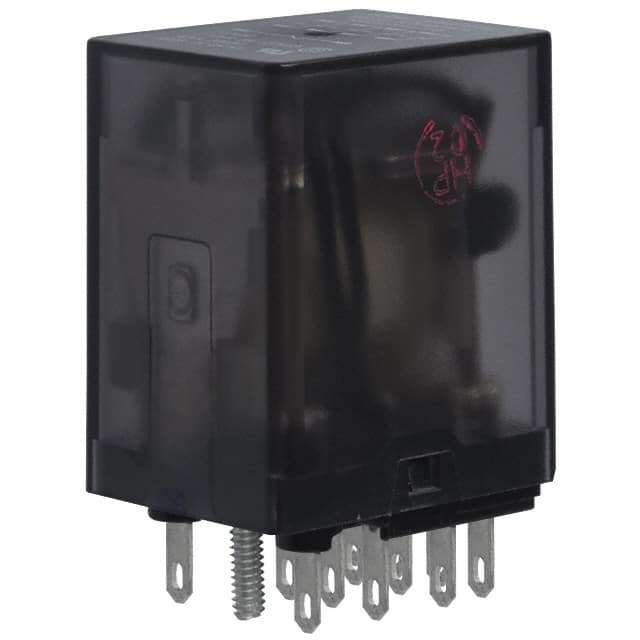

Power Relay 24VDC 2.5A DPDT(28.2x21.8x32.5)mm Socket

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.20
Automotive	No
PPAP	No
Contact Arrangement	DPDT
Contact Form	2 Form C
DC Coil Voltage (V)	24
Coil Current (mA)	36.9
Coil Resistance (Ohm)	650
Maximum Pick-Up Voltage	18VDC
Maximum AC Switching Voltage (V)	240
Maximum Switching Current (A)	2.5
Operate Time (ms)	16
Release Time (ms)	6
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Terminal Form	Socket
Terminal Form	Plug-In
Number of Terminals	8
Operating Temperature-Min	-45
Operating Temperature-Max	70
Product Weight (g)	45
Length (mm)	28.2
Depth (mm)	21.8
