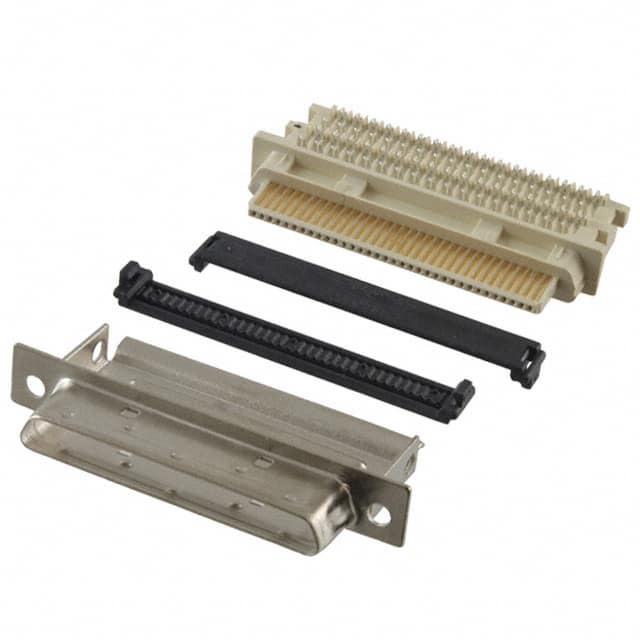

5787775-1

SKU: 128836

Manufacturer: TE Connectivity

Conn VHDCI PL 68 POS 0.8mm IDT ST Cable Mount 68 Terminal 1 Port Package

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	IEEE 488
Gender	PL
Number of Contacts	68
Number of Terminals	68
Number of Ports	1
Termination Method	IDT
Terminal Pitch (mm)	0.8
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	30VAC
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	2000
Packing Method	Package
Length (mm)	43.2
Depth (mm)	22.25
Height (mm)	6.88
Contact Plating	Gold
Contact Body Material	Phosphor Bronze
