5787131-2 TE Connectivity

5787131-2

SKU: 29867

Manufacturer: TE Connectivity

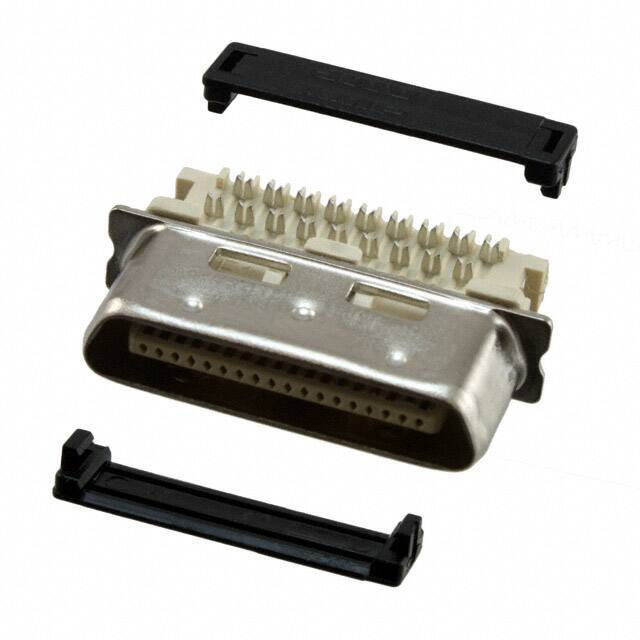

Conn VHDCI PL 36 POS 0.8mm IDT RA Cable Mount 36 Terminal 1 Port Package

Download sample

Request Free Samples

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	IEEE 488
Gender	PL
Number of Contacts	36
Number of Terminals	36
Number of Ports	1
Termination Method	IDT
Terminal Pitch (mm)	0.8
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	30VAC
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-55
Operating Temperature-Max	85
Mating Cycle (Cycles)	2000
Packing Method	Package
Length (mm)	22.28
Depth (mm)	5.8
Height (mm)	13.4
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
