5745783-6

SKU: 79274

Manufacturer: TE Connectivity

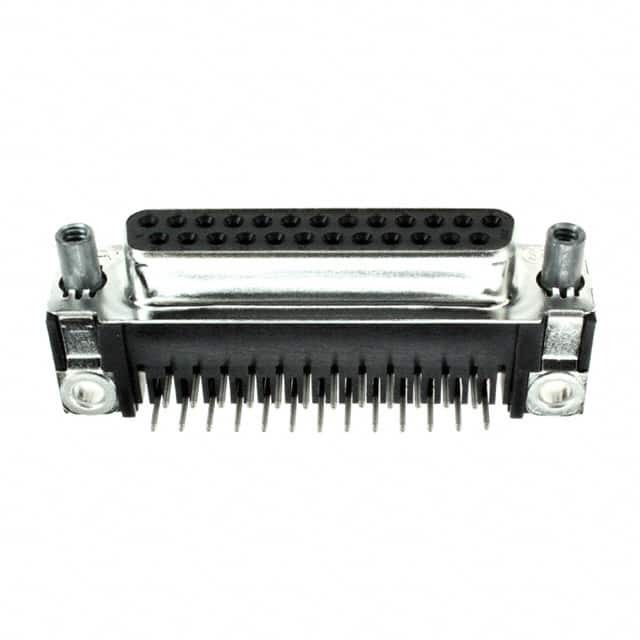

Conn D-Subminiature SKT 25 POS 1.38mm Solder RA Thru-Hole 25 Terminal 1 Port Tray

3080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	RCP
Number of Contacts	25
Number of Terminals	25
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.38
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	6/Contact
Voltage Rating-Max	250VDC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	105
Mating Cycle (Cycles)	500
Shell Body Material	Carbon Steel
Shell Plating	Tin Over Copper
Shell Size	3
Less Contact	No
Packing Method	Tray
Length (mm)	53.03
Depth (mm)	18.8
Height (mm)	12.55
Housing Color	Black
Contact Plating Thickness	(0.762/1.27)um
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
