5745781-4

SKU: 22756

Manufacturer: TE Connectivity

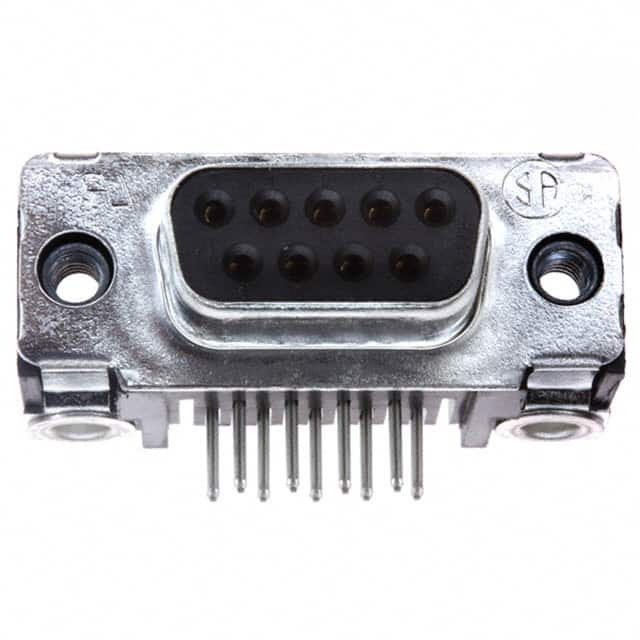

Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	D-Subminiature
Gender	RCP
Number of Contacts	9
Number of Terminals	9
Number of Ports	1
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	1.37
Body Orientation	Right Angle
Contact Gender	SKT
Current Rating-Max(A)	6/Contact
Voltage Rating-Max	125VAC
Insulation Resistance (MOhm)	5000
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-55
Operating Temperature-Max	105
Shell Body Material	Carbon Steel
Shell Plating	Tin
Shell Size	1
Less Contact	No
Packing Method	Tray
Length (mm)	30.81
Depth (mm)	18.79
Height (mm)	12.54
Contact Plating	Gold Over Nickel
Contact Body Material	Phosphor Bronze
