1734366-1

SKU: 93294

Manufacturer: TE Connectivity

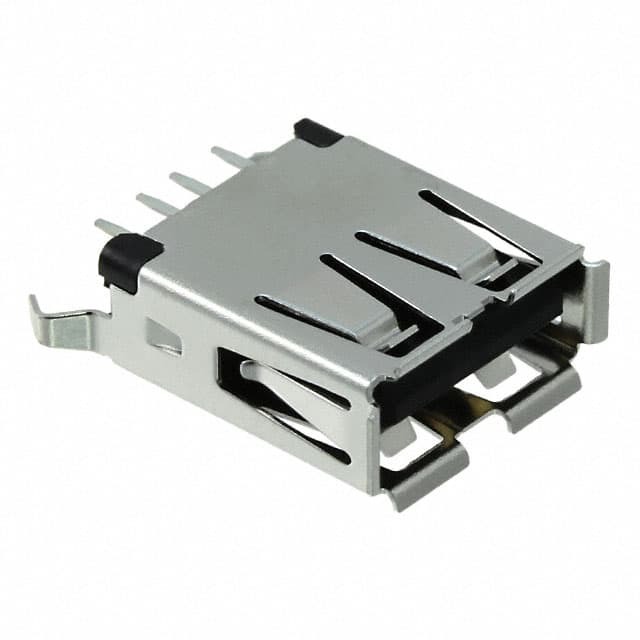

Conn USB 2.0 Type A RCP 4 POS 2mm/2.5mm Solder ST Thru-Hole 4 Terminal 1 Port Tray

3490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
SVHC	Yes
Automotive	No
PPAP	No
Type	USB 2.0 Type A
Gender	RCP
Number of Terminals	4
Number of Contacts	4
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	2/2.5
Body Orientation	Straight
Current Rating-Max(A)	1/Contact
Voltage Rating-Max	30VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Mating Cycle (Cycles)	1500
Shell Body Material	Brass
Shell Plating	Tin Over Nickel
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Length (mm)	15.8
Depth (mm)	7.12
Height (mm)	15
