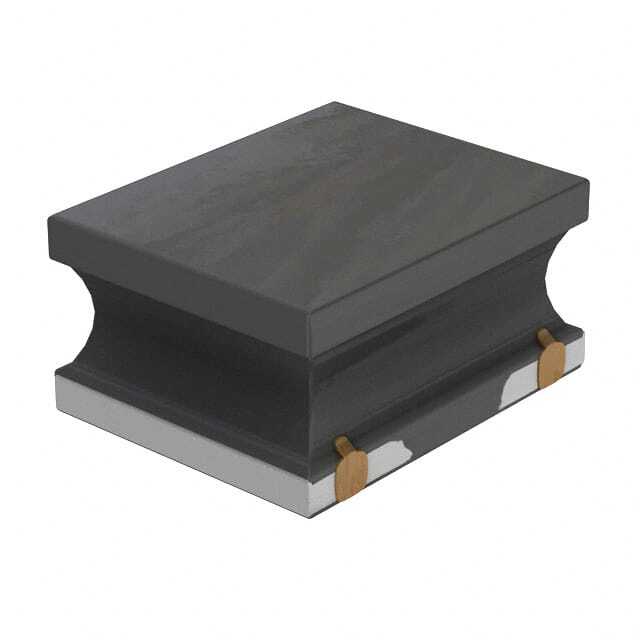

VLS252010CX-1R0M-1

SKU: 135749

Manufacturer: TDK

Inductor Power Shielded Wirewound 1uH 20% 1MHz Ferrite 2.29A 0.065Ohm DCR 1008 T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	1u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	1M
Maximum DC Current (A)	2.29
Maximum Saturation Current (A)	2.25
Maximum DC Resistance (Ohm)	0.065
Number of Terminals	2
Case Size	1008
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	2.7
Terminal Form	Surface Mount
Depth (mm)	2.2
