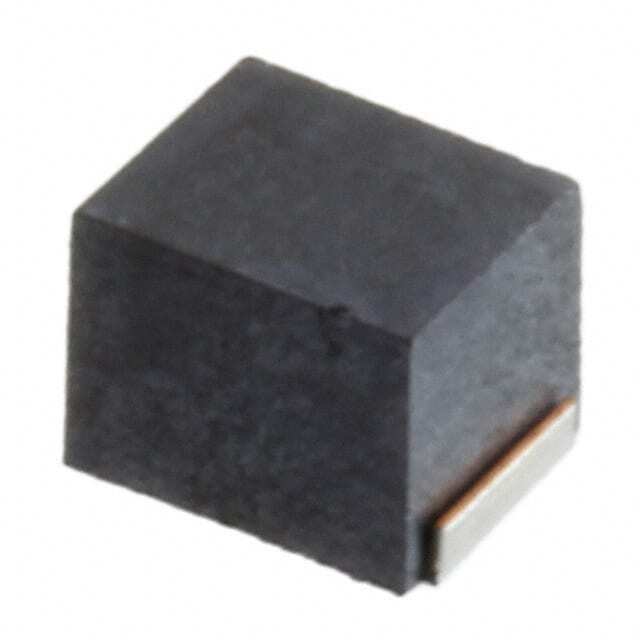

NLFV32T-4R7M-EF

SKU: 144014

Manufacturer: TDK

Inductor Power Shielded/Molded Wirewound 4.7uH 20% 7.96MHz 5Q-Factor Ferrite 0.36A 0.156Ohm DCR 1210 T/R

1330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Ferrite
Inductance (H)	4.7u
Tolerance	20%
Inductance Test Frequency (Hz)	7.96M
Maximum DC Current (A)	0.36
Maximum Saturation Current (A)	0.36
Maximum DC Resistance (Ohm)	0.156
Minimum Quality Factor	5
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	46M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
