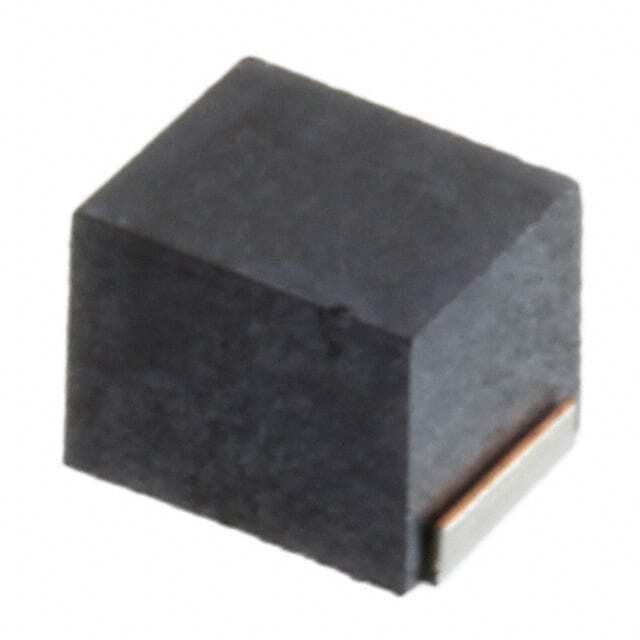

NLFV32T-471K-EF

SKU: 91478

Manufacturer: TDK

Inductor Power Shielded/Molded Wirewound 470uH 10% 796KHz 25Q-Factor Ferrite 0.03A 17.4Ohm DCR 1210 T/R

4200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.40.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Shielded/Molded
Core Body Material	Ferrite
Inductance (H)	470u
Tolerance	10%
Inductance Test Frequency (Hz)	796K
Maximum DC Current (A)	0.03
Maximum Saturation Current (A)	0.03
Maximum DC Resistance (Ohm)	17.4
Minimum Quality Factor	25
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	4M
Number of Terminals	2
Case Size	1210
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Length (mm)	3.4
Terminal Form	Surface Mount
Depth (mm)	2.7
