    PrevDRP-480-24
    NextHWS300-24/HD

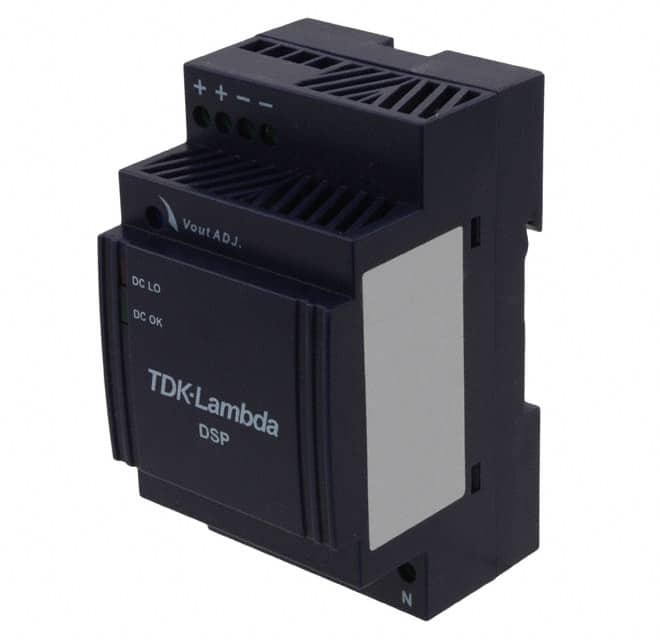

    DSP30-5

    SKU: 108019
    Manufacturer: TDK-Lambda
    AC/DC Power Supply Single-OUT 5V 3A 15W
    Download sample
    Request Free Samples
    4060 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.40.95.20
    Automotive No
    PPAP No
    Type Regulated
    Style DIN Rail
    Power Supply Color Black
    Input/Output Type AC/DC
    Number of Outputs 1
    Output Type Fixed
    Output Voltage (V) 5
    Output Current (A) 3
    Output Power (W) 15
    Minimum AC Input Voltage (V) 90
    Maximum AC Input Voltage (V) 264
    Minimum DC Input Voltage (V) 120
    Maximum DC Input Voltage (V) 370
    Minimum Isolation Voltage 3000VAC
    Line Regulation 1%
    Load Regulation 1%
    Maximum Input Current (A) 0.6
    Input Frequency (Hz) 47 to 63
    Tolerance (%) ±1
    Efficiency (%) 74(Typ)
    Input Connector Type Screw Terminal Block
    Output Connector Type Screw Terminal Block
    Power Indicator Yes
    Ripple & Noise 50mV
    Medical No
    Operating Temperature-Min -25
    Operating Temperature-Max 71
    Terminal Form DIN Rail
    Package Height 91
    Package Length 53
