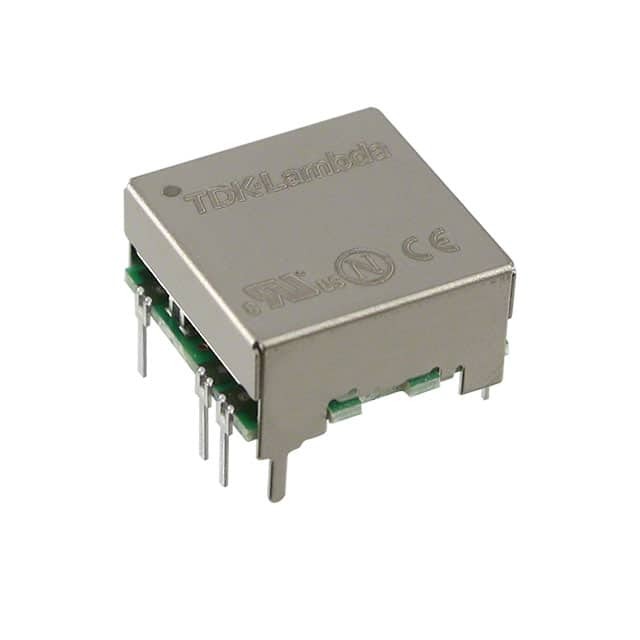

CC1R5-2412DF-E TDK-Lambda

CC1R5-2412DF-E

SKU: 138593

Manufacturer: TDK-Lambda

Module DC-DC 24VIN 2-OUT 12V/-12V 0.06A 1.5W 7-Pin PDIP

Download sample

Request Free Samples

2440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8504.40.95.10
Automotive	No
PPAP	No
Type	Non-Inverting
Number of Outputs	2
Isolation	Isolated
Minimum Input Voltage (V)	18
Typical Input Voltage (V)	24
Maximum Input Voltage (V)	36
Output Voltage (V)	12
Output Current (A)	0.06
Output Power (W)	1.5
Minimum Isolation Voltage	500VAC
Input/Output Type	DC/DC
Switching Regulator	No
Load Regulation	600mV
Line Regulation	80mV
Efficiency (%)	79(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	3.2
Output Type	Fixed
Original Package	PDIP
Pin Count	7
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	8.51
Package Length	16.51
Package Width	16.61
PCB changed	7
