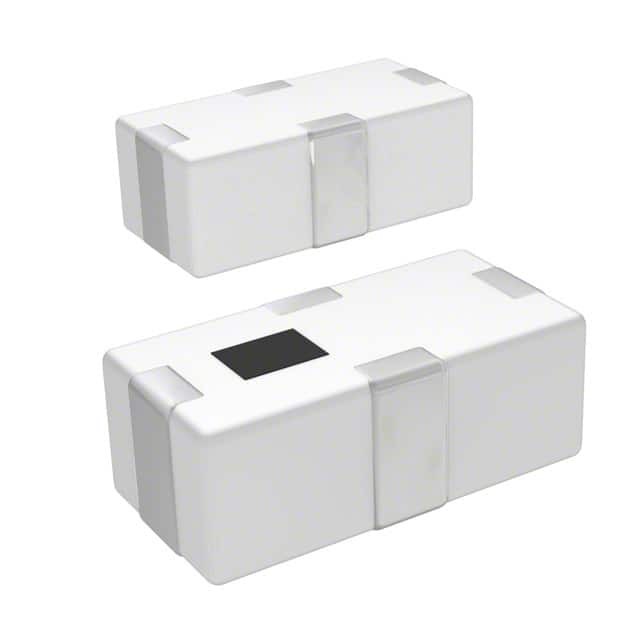

DPX165950DT-8118A1

SKU: 11453

Manufacturer: TDK

RF Diplexer Single 2400MHz to 2500MHz/4900MHz to 5950MHz 4-Pin Chip T/R

4310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	No
PPAP	No
Type	Diplexer
Number of Element per Chip	1
Frequency Band (MHz)	2400 to 2500/4900 to 5950
Maximum Low Band Insertion Loss (dB)	0.8
Maximum High Band Insertion Loss (dB)	0.9
Minimum Low Band Attenuation (dB)	20
Minimum High Band Attenuation (dB)	20
Maximum VSWR	2
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	Chip
Pin Count	4
Standard Package Method	Die
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	1.6
Package Width	0.8
