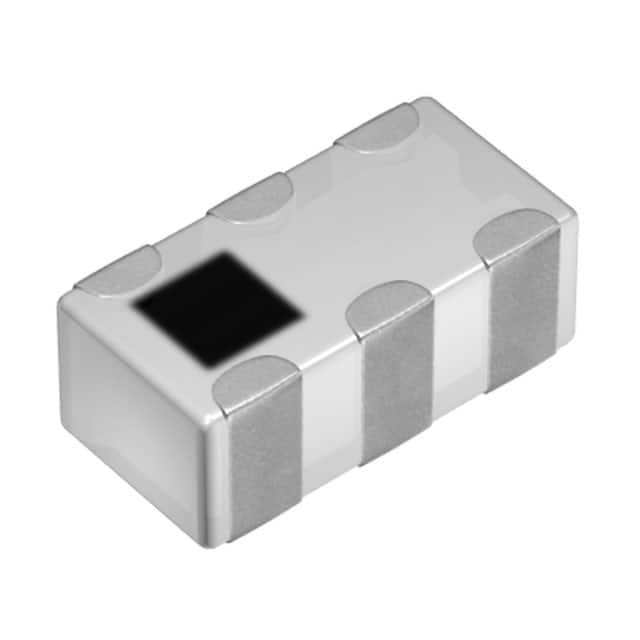

DPX165950DT-8060A1

SKU: 110521

Manufacturer: TDK

RF Diplexer 2400MHz to 2496MHz/5150MHz to 5950MHz 6-Pin T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Diplexer
Frequency Band (MHz)	5150 to 5950
Minimum Low Band Return Loss (dB)	10
Minimum High Band Return Loss (dB)	10
Maximum Low Band Insertion Loss (dB)	0.65
Maximum High Band Insertion Loss (dB)	1.25
Minimum Low Band Attenuation (dB)	15
Minimum High Band Attenuation (dB)	9
Impedance (Ohm)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	0.8
