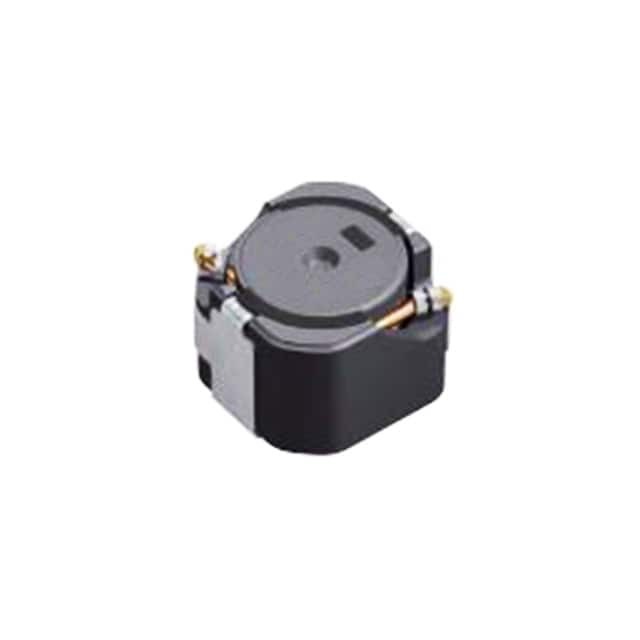

CLF6045NIT-4R7N-D

SKU: 131595

Manufacturer: TDK

Inductor Power Shielded Wirewound 4.7uH 30% 100KHz Ferrite 3.3A 0.03Ohm DCR Automotive T/R

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	4.7u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	30%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	3.3(Typ)
Maximum Saturation Current (A)	3.1
Maximum DC Resistance (Ohm)	0.03
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	6.5
Terminal Form	Surface Mount
Depth (mm)	6.2
