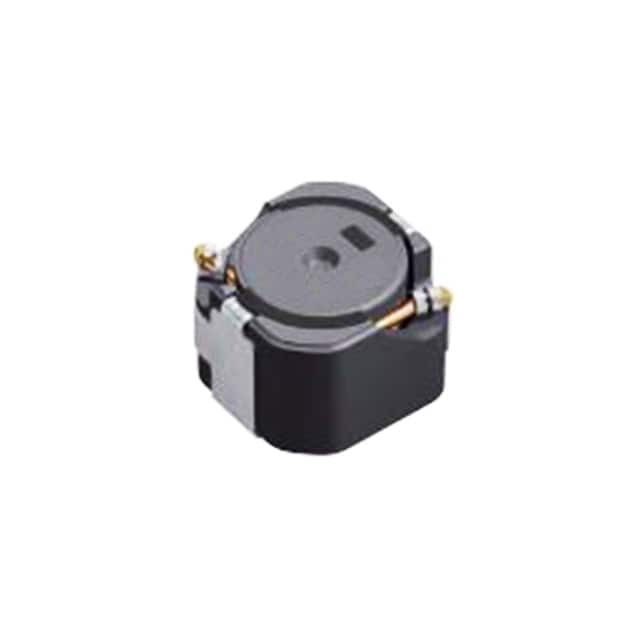

CLF5030NIT-470M-D

SKU: 131593

Manufacturer: TDK

Inductor Power Shielded Wirewound 47uH 20% 100KHz Ferrite 0.68A 0.522Ohm DCR Automotive T/R

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	Yes
PPAP	Unknown
Type	Power
Technology	Wirewound
Protection Style	Shielded
Core Body Material	Ferrite
Inductance (H)	47u
Inductance Decrease Percentage @ Isat (%)	30
Tolerance	20%
Inductance Test Frequency (Hz)	100K
Maximum DC Current (A)	0.68
Maximum Saturation Current (A)	0.75
Maximum DC Resistance (Ohm)	0.522
Number of Terminals	2
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Length (mm)	5.5
Terminal Form	Surface Mount
Depth (mm)	5.2
