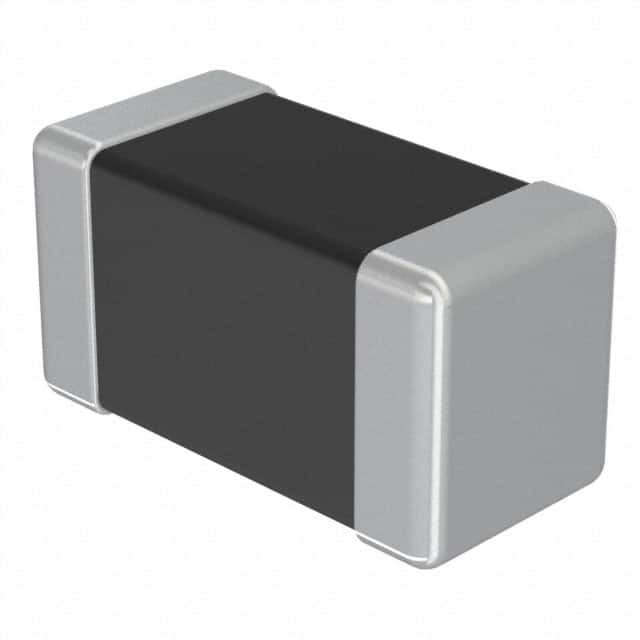

HKQ04023N6B-T

SKU: 118003

Manufacturer: Taiyo Yuden

Inductor High Frequency Chip Multi-Layer 0.0036uH 0.1nH 500MHz 8Q-Factor Ceramic 0.24A 0.35Ohm DCR 01005 T/R

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	High Frequency Chip
Technology	Multi-Layer
Core Body Material	Ceramic
Inductance (H)	0.0036u
Tolerance	0.1nH
Inductance Test Frequency (Hz)	500M
Maximum DC Current (A)	0.24
Maximum DC Resistance (Ohm)	0.35
Minimum Quality Factor	8
Quality Test Frequency (Hz)	500M
Minimum Self Resonant Frequency (Hz)	6500M
Number of Terminals	2
Case Size	01005
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	0.42
Terminal Form	Surface Mount
Depth (mm)	0.22
