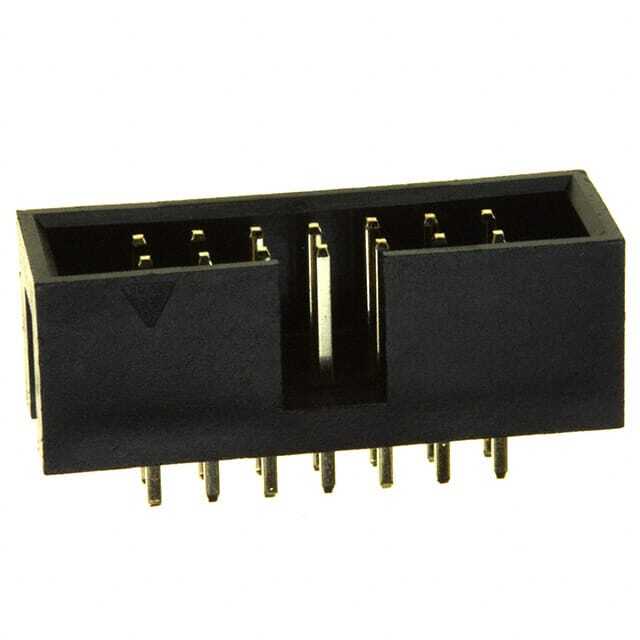

SBH11-PBPC-D07-ST-BK

SKU: 120336

Manufacturer: Sullins Connector Solutions

Conn Shrouded Header (4 Sides) HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole

4440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	14
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Slot
Row Spacing (mm)	2.54
Current Rating-Max(A)	3/Contact
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Length (mm)	25.28
Depth (mm)	9.1
Height (mm)	9.1
Tail Length (mm)	3
