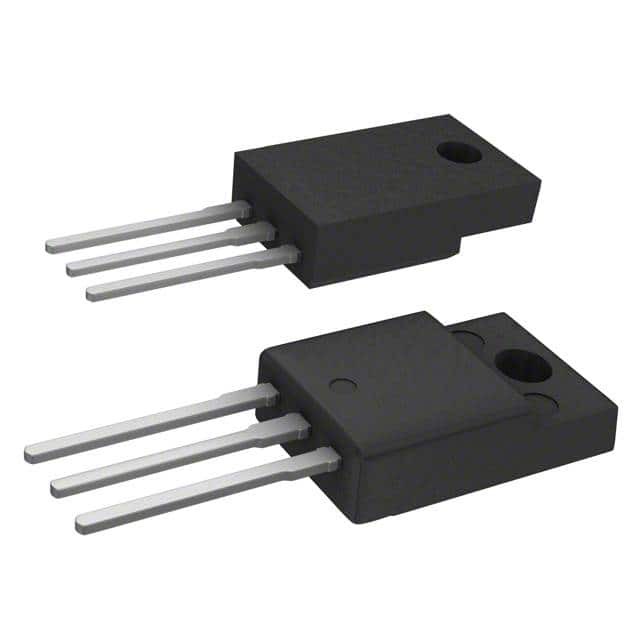

TN2015H-6FP

SKU: 38285

Manufacturer: STMicroelectronics

SCR Diode 600V 20A(RMS) 197A 3-Pin(3+Tab) TO-220FPAB Tube

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	750(Min)
Maximum Rate of Rise of On-State Current (A/us)	100
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	15
Surge Current Rating (A)	197
Maximum Holding Current (mA)	50
Repetitive Peak Reverse Voltage (V)	600
Peak On-State Voltage (V)	1.6@40A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	12.7
RMS On-State Current (A)	20
Repetitive Peak Off-State Current (mA)	0.005
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	TO-220FPAB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.4(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
