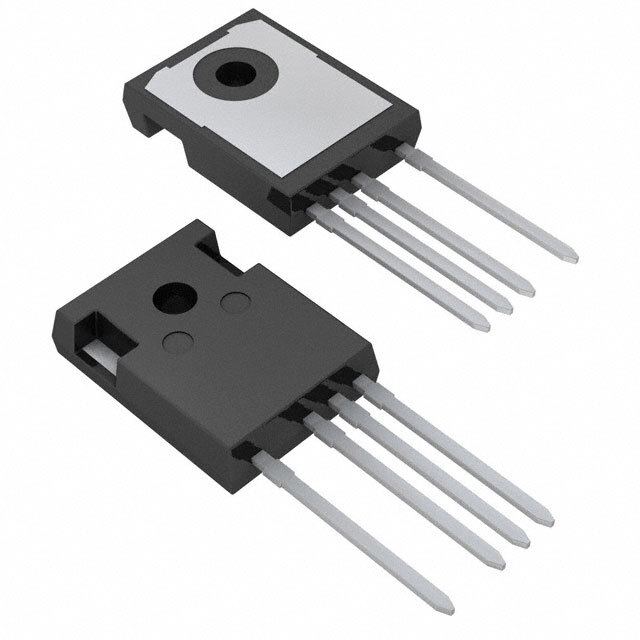

STW88N65M5-4

SKU: 59525

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 650V 84A 4-Pin(4+Tab) TO-247 Tube

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	650
Maximum Gate Source Voltage (V)	±25
Maximum Continuous Drain Current (A)	84
Maximum Drain Source Resistance (mOhm)	29@10V
Typical Gate Charge @ Vgs (nC)	204@10V
Typical Input Capacitance @ Vds (pF)	8825@100V
Maximum Power Dissipation (mW)	450000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	4
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21
Package Length	15.8
Package Width	5
PCB changed	4
Tab	Tab
