STW48N60M6

SKU: 101711

Manufacturer: STMicroelectronics

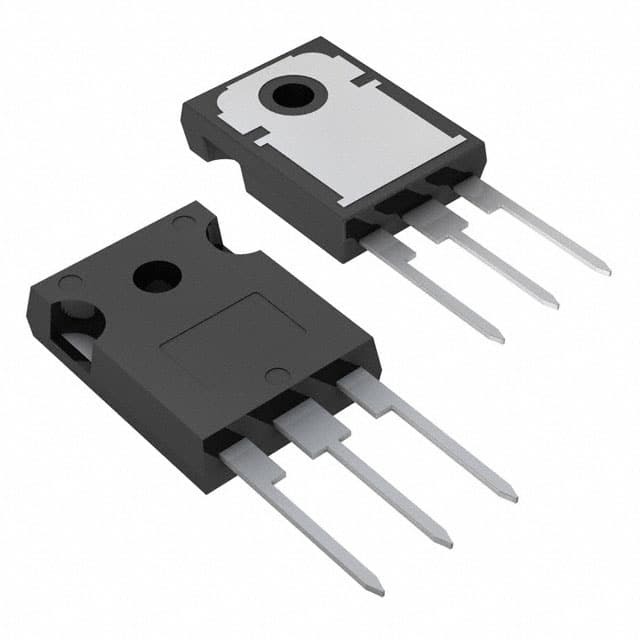

Trans MOSFET N-CH 600V 39A 3-Pin(3+Tab) TO-247 Tube

3750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	4.75
Maximum Continuous Drain Current (A)	39
Maximum Gate Source Leakage Current (nA)	5000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	69@10V
Typical Gate Charge @ Vgs (nC)	57@10V
Typical Gate Charge @ 10V (nC)	57
Typical Input Capacitance @ Vds (pF)	2578@100V
Maximum Power Dissipation (mW)	250000
Typical Fall Time (ns)	9.5
Typical Rise Time (ns)	34
Typical Turn-Off Delay Time (ns)	60
Typical Turn-On Delay Time (ns)	28
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
Tab	Tab
