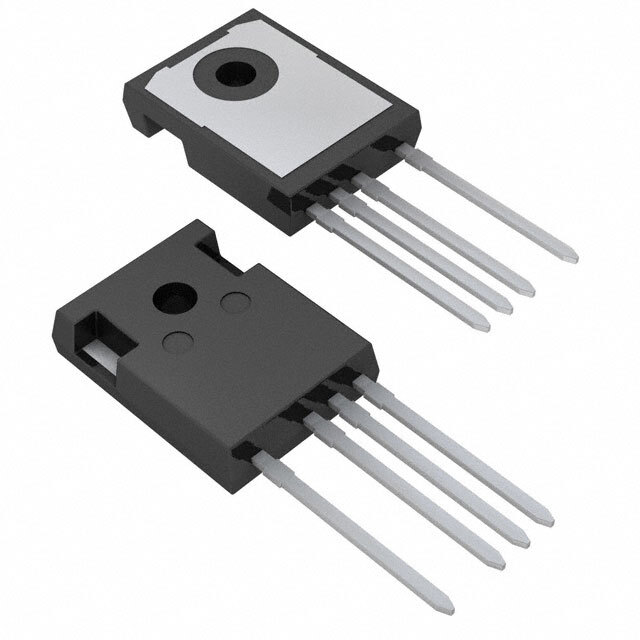

STW48N60M2-4

SKU: 85546

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 600V 42A 4-Pin(4+Tab) TO-247 Tube

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Process Technology	MDmesh M2
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	42
Maximum Gate Source Leakage Current (nA)	10
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	70@10V
Typical Gate Charge @ Vgs (nC)	70@10V
Typical Gate Charge @ 10V (nC)	70
Typical Input Capacitance @ Vds (pF)	3060@100V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	119
Typical Rise Time (ns)	17
Typical Turn-Off Delay Time (ns)	13
Typical Turn-On Delay Time (ns)	18.5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	4
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21
Package Length	15.8
Package Width	5
PCB changed	4
Tab	Tab
