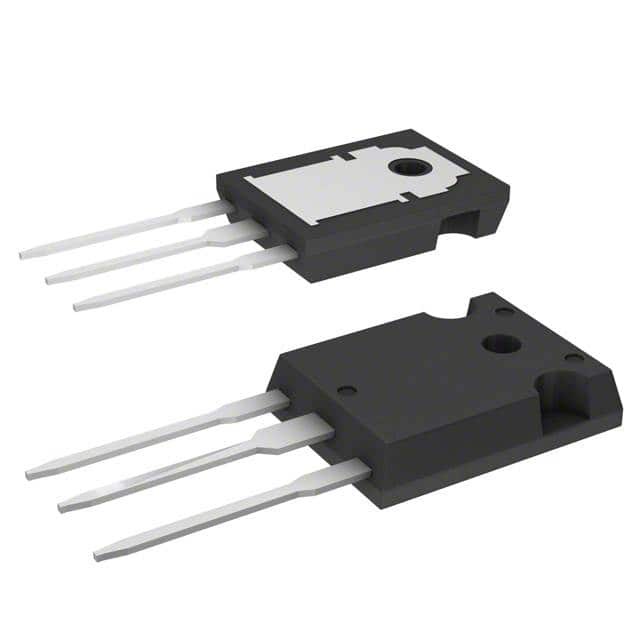

STW25N60M2-EP

SKU: 71455

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 600V 18A 3-Pin(3+Tab) TO-247 Tube

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±25
Maximum Continuous Drain Current (A)	18
Maximum Drain Source Resistance (mOhm)	188@10V
Typical Gate Charge @ Vgs (nC)	25.2@10V
Typical Gate Charge @ 10V (nC)	25.2
Typical Input Capacitance @ Vds (pF)	1090@100V
Maximum Power Dissipation (mW)	150000
Typical Fall Time (ns)	61
Typical Rise Time (ns)	10
Typical Turn-Off Delay Time (ns)	61
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
Tab	Tab
