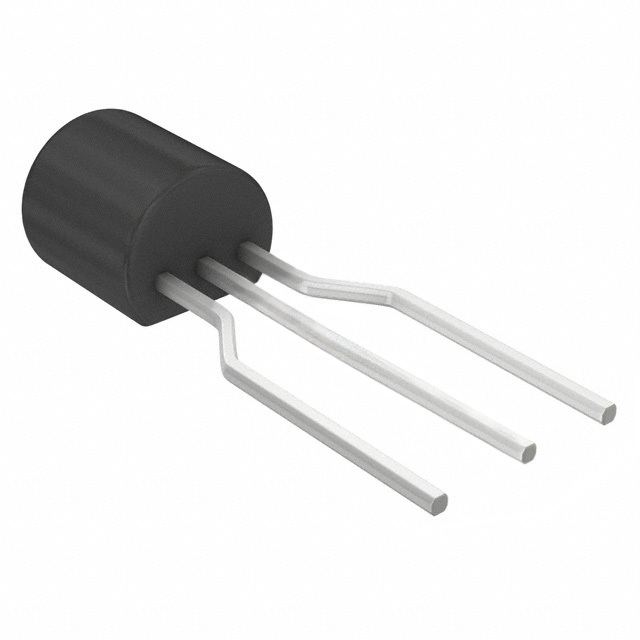

STQ2NK60ZR-AP

SKU: 50366

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 600V 0.4A 3-Pin TO-92 T/R

15370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	0.4
Maximum Drain Source Resistance (mOhm)	8000@10V
Typical Gate Charge @ Vgs (nC)	7.7@10V
Typical Gate Charge @ 10V (nC)	7.7
Typical Input Capacitance @ Vds (pF)	170@25V
Maximum Power Dissipation (mW)	3000
Typical Fall Time (ns)	25
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	22
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	4.95(Max)
Package Width	3.94(Max)
PCB changed	3
