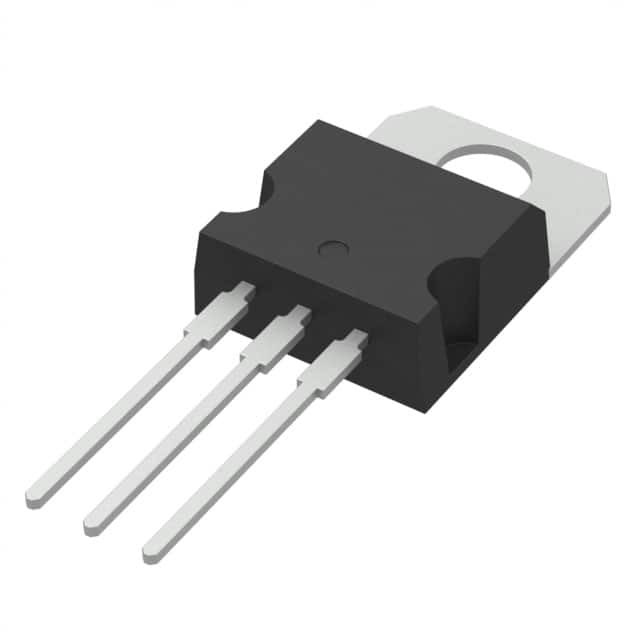

STP36NF06

SKU: 43203

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 60V 30A Automotive 3-Pin(3+Tab) TO-220AB Tube

4140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Process Technology	STripFET II
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	30
Maximum Drain Source Resistance (mOhm)	40@10V
Typical Gate Charge @ Vgs (nC)	23@10V
Typical Gate Charge @ 10V (nC)	23
Typical Input Capacitance @ Vds (pF)	690@25V
Maximum Power Dissipation (mW)	70000
Typical Fall Time (ns)	9
Typical Rise Time (ns)	40
Typical Turn-Off Delay Time (ns)	27
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220AB
Terminal Form	Through Hole
Package Height	9.15(Max)
Package Length	10.4(Max)
Package Width	4.6(Max)
PCB changed	3
Tab	Tab
