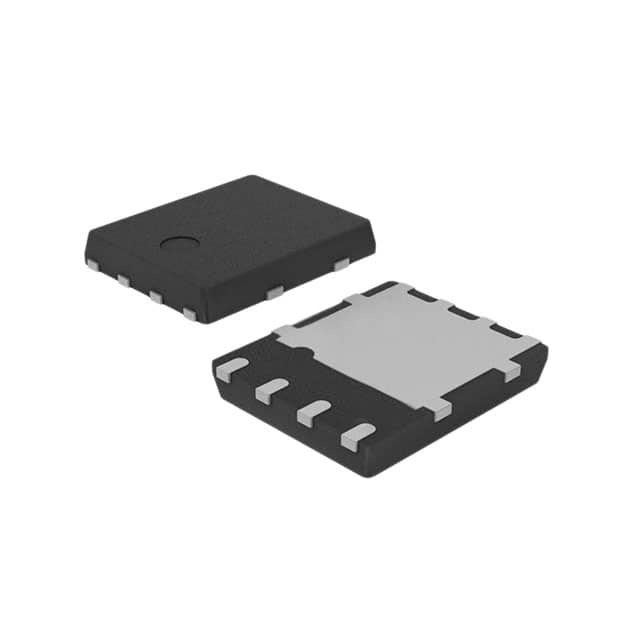

STL160NS3LLH7

SKU: 127969

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 30V 160A 8-Pin Power Flat EP T/R

2650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	STripFET VII
Configuration	Single Quad Drain Triple Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	2.3
Maximum Continuous Drain Current (A)	160
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	500
Maximum Drain Source Resistance (mOhm)	2.1@10V
Typical Gate Charge @ Vgs (nC)	22@4.5V
Typical Input Capacitance @ Vds (pF)	3245@25V
Maximum Power Dissipation (mW)	84000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Original Package	Power Flat EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.95(Max)
PCB changed	8
