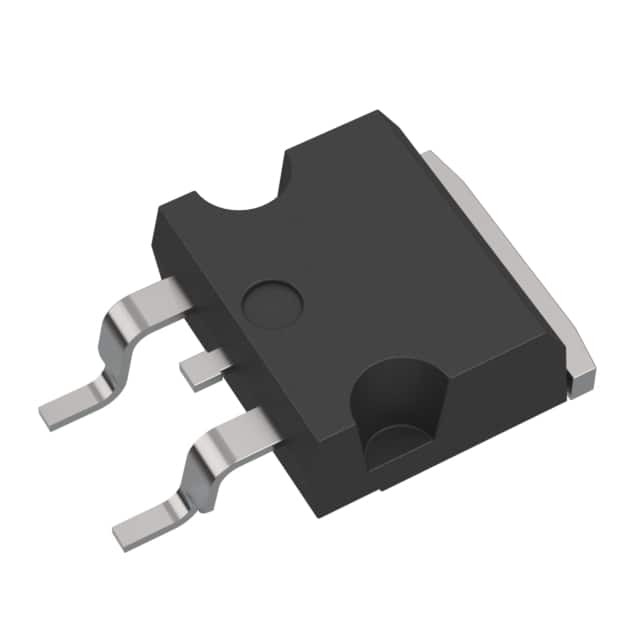

STH410N4F7-2AG

SKU: 52425

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 40V 200A Automotive 3-Pin(2+Tab) H2PAK T/R

1900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	200
Maximum Drain Source Resistance (mOhm)	1.1@10V
Typical Gate Charge @ Vgs (nC)	141@10V
Typical Input Capacitance @ Vds (pF)	11500@25V
Maximum Power Dissipation (mW)	365000
Typical Fall Time (ns)	44.2
Typical Rise Time (ns)	198
Typical Turn-Off Delay Time (ns)	108
Typical Turn-On Delay Time (ns)	35
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	H2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.8(Max)
Package Length	10.4(Max)
Package Width	9.17(Max)
PCB changed	2
Tab	Tab
