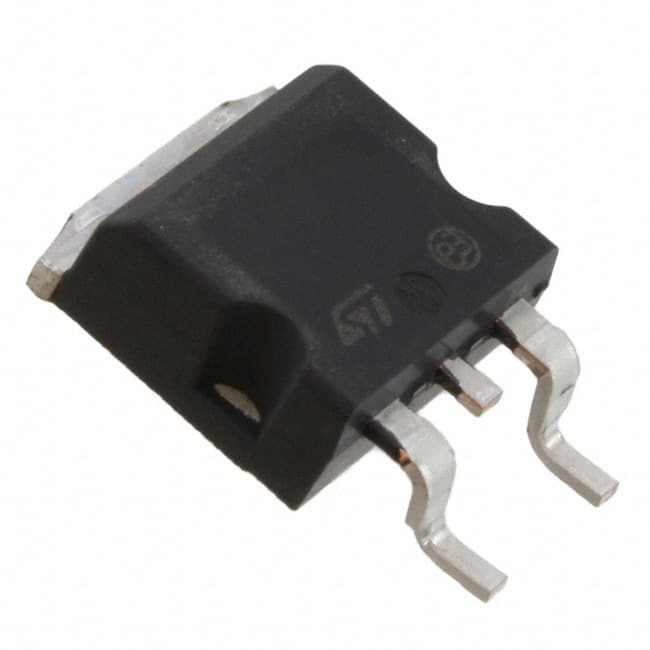

STH3N150-2

SKU: 120934

Manufacturer: STMicroelectronics

Trans MOSFET N-CH 1.5KV 2.5A 3-Pin(2+Tab) H2PAK T/R

870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1500
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5
Operating Junction Temperature (°C)	150
Maximum Continuous Drain Current (A)	2.5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	9000@10V
Typical Gate Charge @ Vgs (nC)	29.3@10V
Typical Gate Charge @ 10V (nC)	29.3
Typical Input Capacitance @ Vds (pF)	939@25V
Maximum Power Dissipation (mW)	140000
Typical Fall Time (ns)	61
Typical Rise Time (ns)	47
Typical Turn-Off Delay Time (ns)	45
Typical Turn-On Delay Time (ns)	24
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	H2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.8(Max)
Package Length	10.4(Max)
Package Width	9.17(Max)
PCB changed	2
Tab	Tab
