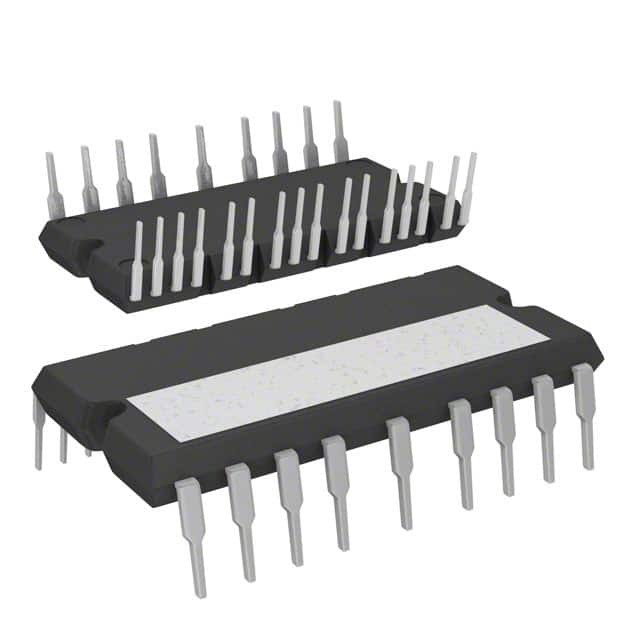

STGIPS20C60-H STMicroelectronics

STGIPS20C60-H

SKU: 106697

Manufacturer: STMicroelectronics

IPM IGBT 600V 20A 25-Pin SDIP Tube

Download sample

Request Free Samples

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	IGBT
Configuration	Hex
Number of Phases	Three
Protection Type	Over Current/Over Temperature
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.6
Maximum Continuous Collector Current (A)	20
Maximum Isolation Voltage (Vrms)	2500
Maximum Collector-Emitter Cut-Off Current (mA)	0.1
Maximum Power Dissipation (W)	46
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	SDIP
Pin Count	25
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.4
Package Length	44.4
Package Width	22
PCB changed	25
