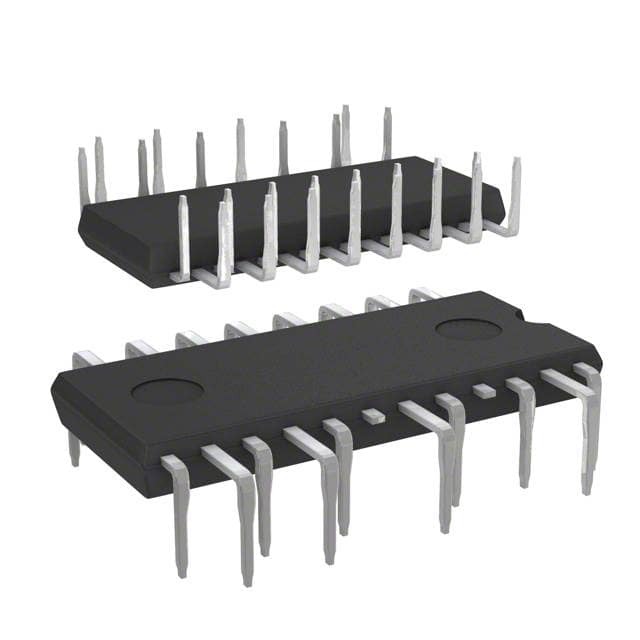

STGIPQ5C60T-HZ STMicroelectronics

STGIPQ5C60T-HZ

SKU: 57385

Manufacturer: STMicroelectronics

IPM IGBT 600V 5A 26-Pin N2DIP Tube

Download sample

Request Free Samples

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	IGBT
Configuration	Hex
Number of Phases	Three
Protection Type	Over Current/Under Voltage
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.7
Maximum Continuous Collector Current (A)	5
Maximum Isolation Voltage (Vrms)	1500
Maximum Collector-Emitter Cut-Off Current (mA)	0.25
Maximum Power Dissipation (W)	13.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	N2DIP
Pin Count	26
Terminal Form	Through Hole
Package Height	4.1
Package Length	32.15
Package Width	12.45
