STB80NE03L-06

SKU: 120930

Manufacturer: STMicroelectronics

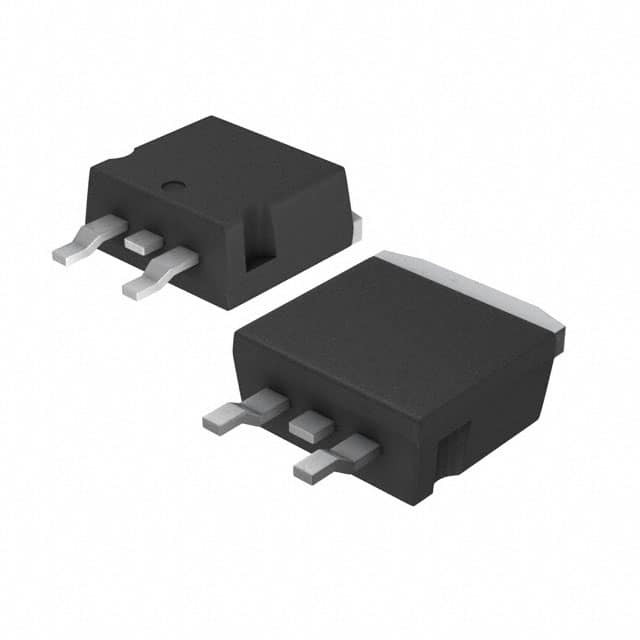

Trans MOSFET N-CH 30V 80A 3-Pin(2+Tab) D2PAK

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	80
Maximum Drain Source Resistance (mOhm)	6@10V
Typical Gate Charge @ Vgs (nC)	95@5V
Typical Input Capacitance @ Vds (pF)	6500@25V
Maximum Power Dissipation (mW)	150000
Typical Fall Time (ns)	165
Typical Rise Time (ns)	260
Typical Turn-On Delay Time (ns)	40
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	D2PAK
Pin Count	3
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.6(Max)
Package Length	10.4(Max)
Package Width	9.35(Max)
PCB changed	2
