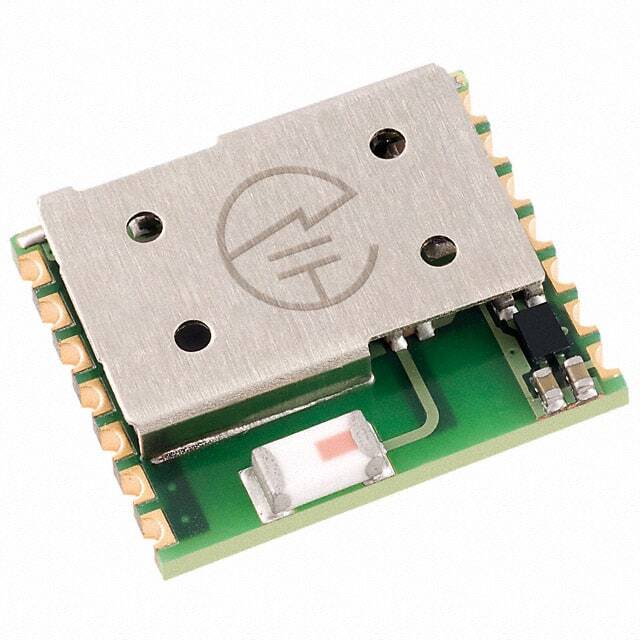

SPBT2632C2A.AT2

SKU: 64309

Manufacturer: STMicroelectronics

Bluetooth Class II 2.5V 1.5Mbps 16-Pin SMD Tray

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A002.a.2
Part Status	Obsolete
HTS	8517.70.00.00
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v3.0
Power Class	Class II
Maximum Data Rate (Mbps)	1.5
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
Solutions	ISM/M2M
ISM Band	2.4GHz
Typical Sensitivity (dBm)	-86
Interface Type	GPIO/SPI/UART
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.9
Package Length	13.5
Package Width	11.6

Your name

Your email

Enquiry

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A002.a.2
Part Status	Obsolete
HTS	8517.70.00.00
Automotive	No
PPAP	No
Type	Module
Protocols Supported	Bluetooth v3.0
Power Class	Class II
Maximum Data Rate (Mbps)	1.5
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
Solutions	ISM/M2M
ISM Band	2.4GHz
Typical Sensitivity (dBm)	-86
Interface Type	GPIO/SPI/UART
Operating Supply Voltage-Min (V)	2.1
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	16
Terminal Form	Surface Mount
Package Height	2.9
Package Length	13.5
Package Width	11.6
