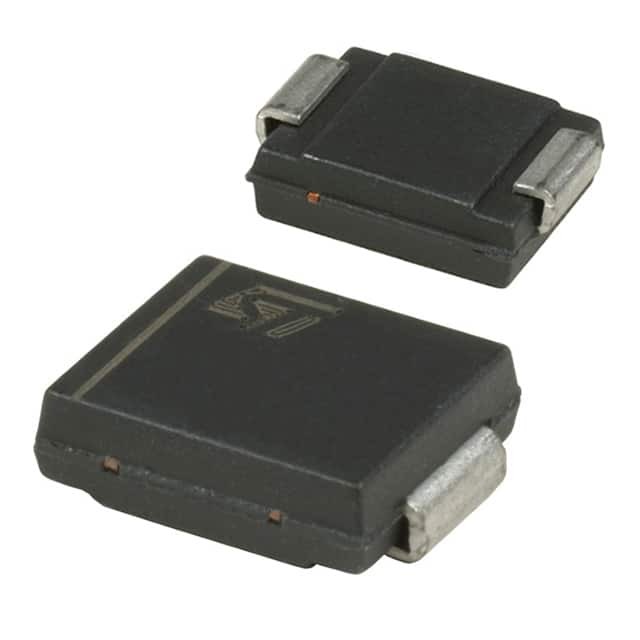

SM30T7.5CAY

SKU: 115835

Manufacturer: STMicroelectronics

TVS Diode Single Bi-Dir 6.5V 3KW Automotive 2-Pin SMC T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	7.13
Maximum Clamping Voltage (V)	11.2
Maximum Reverse Stand-Off Voltage (V)	6.5
Maximum Peak Pulse Current (A)	268
Maximum Reverse Leakage Current (uA)	250
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	3000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.45(Max)
Package Length	7.15(Max)
Package Width	6.25(Max)
PCB changed	2
