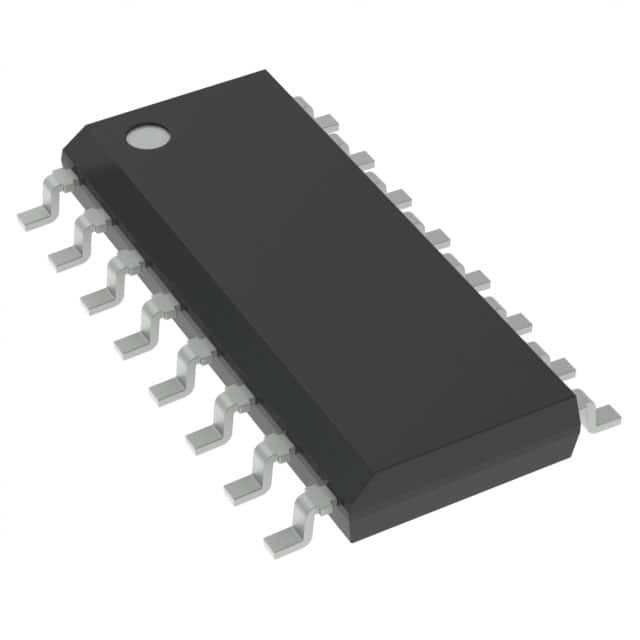

SG3524P

SKU: 84970

Manufacturer: STMicroelectronics

Voltage Mode PWM Controller 300kHz 16-Pin SO N Tube

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	300(Typ)
Maximum Duty Cycle (%)	45
Rise Time (ns)	200
Fall Time (ns)	100
Operating Supply Voltage (V)	8 to 40
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage-Max (V)	40
Maximum Power Dissipation (mW)	1000
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	SO N
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	10(Max)
Package Width	4(Max)
PCB changed	16
