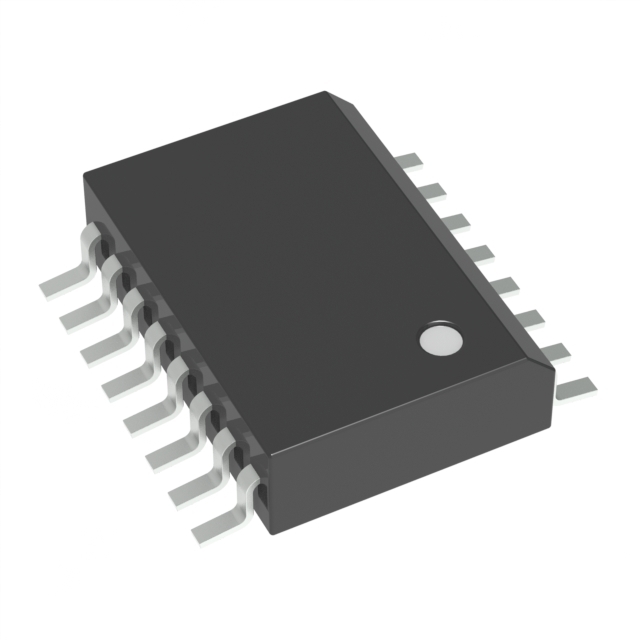

SG3525ADW

SKU: 42595

Manufacturer: Microsemi

Voltage Mode PWM Controller 400mA 350kHz 16-Pin SOIC W

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage
Topology	Push-Pull
Number of PWM Outputs	2
Oscillator Accuracy (kHz)	40
Switching Frequency (kHz)	350
Maximum Duty Cycle (%)	49(Typ)
Rise Time (ns)	100
Output Current (mA)	400(Max)
Fall Time (ns)	50
Operating Supply Voltage (V)	4.5 to 35
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	35
Maximum Supply Current (mA)	20
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	0
Operating Temperature-Max	70
Original Package	SOIC W
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10.01(Max)
Package Width	4.01(Max)
PCB changed	16
