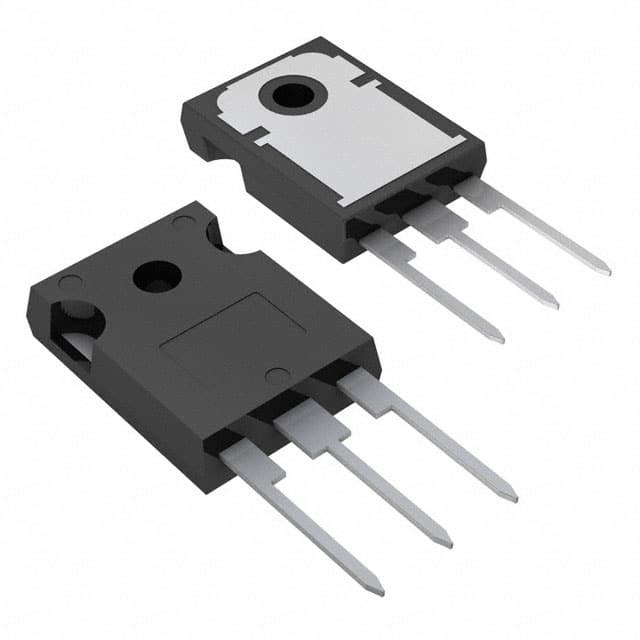

SCT30N120

SKU: 84934

Manufacturer: STMicroelectronics

Trans MOSFET N-CH SiC 1.2KV 45A 3-Pin HIP-247 Tube

210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	SiC
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1200
Maximum Gate Source Voltage (V)	±25
Maximum Gate Threshold Voltage (V)	2.6(Typ)
Maximum Continuous Drain Current (A)	45
Maximum Gate Source Leakage Current (nA)	250
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	100@20V
Typical Gate Charge @ Vgs (nC)	105@20V
Typical Input Capacitance @ Vds (pF)	1700@400V
Maximum Power Dissipation (mW)	270000
Operating Temperature-Min	-55
Operating Temperature-Max	200
Packing Method	Tube
Original Package	HIP-247
Pin Count	3
Terminal Form	Through Hole
Package Height	20.15(Max)
Package Length	15.75(Max)
Package Width	5.15(Max)
PCB changed	3
